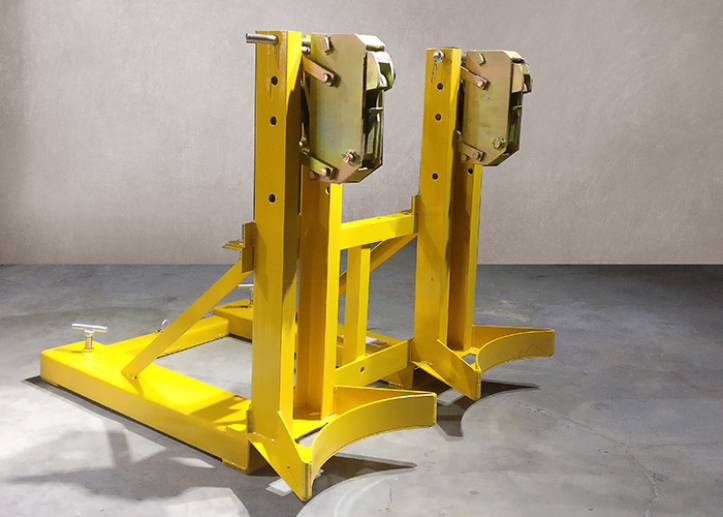

DRUM
HANDLING
Range of Products for stacking material, Jigs, Fixtures at different heights in the racks at stores, Warehouses, etc. The range covers from Manual to Full electric equipment with load up to 2 ton and height up to 12 meters. Equipment confirms international standards with robust design and construction giving maximum output with minimum maintenance. Apart from the product shown below, we offer customized solutions as well.
| Type | Manual | Semi-Electric | |||
| Model | CDS1 | CDS2 | CDS1E | CDS2E | CDS3E |
| Capacity | 350 | 350 | 350 | 350 | 350 |
| Min Hight | 70 | 50 | 50 | 50 | 50 |
| Total Lift Height | 2640 | 2880 | 1400 | 2200 | 2700 |
| Overall Length | 1520 | 1400 | 1460 | 1460 | 1460 |
| Overall Width | 1050 | 935 | 890 | 890 | 890 |
| Overall Height | 1500 | 2070 | 2020 | 1770 | 2020 |
| Turning Radius | 1200 | 1200 | 1200 | 1200 | 1200 |
| Drum Dia | 580 | 580 | 580 | 580 | 580 |
| Drum Height | 900 | 900 | 900 | 900 | 900 |
| Lifting Motor V/kW | N/A | N/A | 12/1.6 | 12/1.7 | 12/1.8 |
| Battery V/Ah | N/A | N/A | 12/100 | 12/101 | 12/102 |
| Wheels | Nylon | Nylon | Nylon | Nylon | Nylon |
| Drum Clamping | Full Cercumference Lock | Collar and Bottom Support with Peacock Beak | |||
| Service Weight | 235 | 280 | 300 | 385 | 405 |
